H-welding Rotary Turning table VFD Speed Control revolving and overturning electric control welding positioner
Brief Introduction:
· The welding positioner consists of a worktable revolving mechanism, an overturning device, and electric control system.
· The workpiece can reach the most suitable position through worktable revolving and overturning devices.
· The worktable revolving can achieve the best welding speed by step-less frequency conversion.
Attention: Standard-type welding positioners can't meet all workpieces’ processing, please provide your workpiece’s weight, shape, and other specifications in detail so that we can provide the best solution way for your reference.
Applications:
The welding positioners can be used in many industries such as pipe, tank, pressure vessel, boiler, freezing equipment, power station construction, metallurgical, engineering machinery, marine building, chemical industries, etc.
Datasheet:
| Model | HB6 |
| Rated loading (kg) | 600 |
| Revolve speed (rpm) | 0.1-1.1 |
| Tilt speed (rpm) | ≈0.8 |
| Work-table dia. (mm) | Φ800 |
| Max.Eccentricity distance (mm) | 150 |
| Max gravity center distance (mm) | 250 |
| Work-table tilting angle | 0-120° |
| Revote driving power (kW) | 0.37 |
| Tilting driving power (kW) | 0.55 |
| Revolve dia. at 90°(mm) | ≦1500 |
| Size | L (mm) | 1300 |
| H (mm) | 900 |
| B (mm) | 1000 |
| Equipment weight (kg) | 700 |
| Speed adjusting way | Rotation speed VPD controll |
| Tilting speed fixed (Common break motor) |
Competitive advantage:
1. Main electric elements are Siemens/Schneider.
2. VFD rotary speed control, improving the reliability of operation.
3. Steel and rubber roller or PU roller which can ensure a long time using.
4. With lubrication system.
5. Accept testing before delivery.
6. Accept special designs.

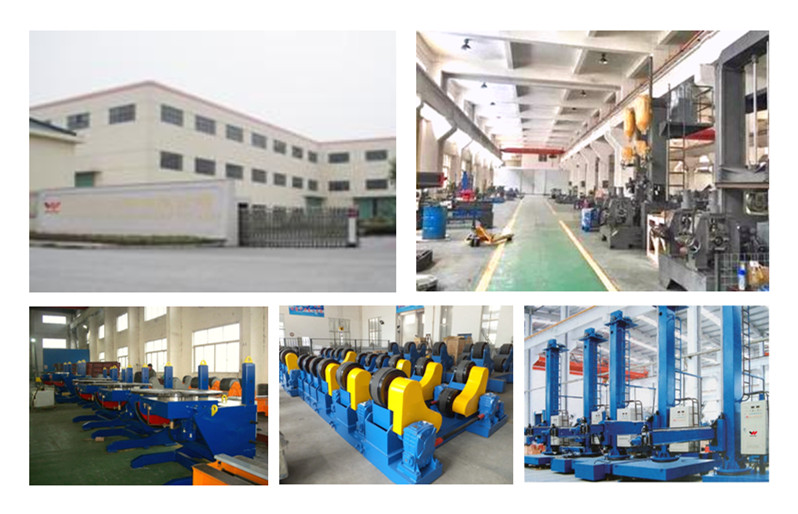

Wuxi H-welding Machinery Co., Ltd was set up in 2017. H-welding is a technical and production-oriented enterprise that is mainly engaged in R&D, design, manufacturing, installation and commissioning, technical training, and consulting services of industrial robot integration, intelligent welding equipment, steel structure automatic production lines, and various non-standard customized automatic equipment.
The H-welding has always implemented the business philosophy of “integrity and pragmatism,people-oriented”, with the tenet of “high-quality products, first-class service”, together with the rich experience accumulated over the years, combined with international advanced welding and automation equipment technology, and constantly develop new products according to market needs.
H-welding actively introduces international advanced industry technology and strives to develop and provide customers with a full range of solutions through scientific management methods, advanced business concepts, and strong technical development strengths.
