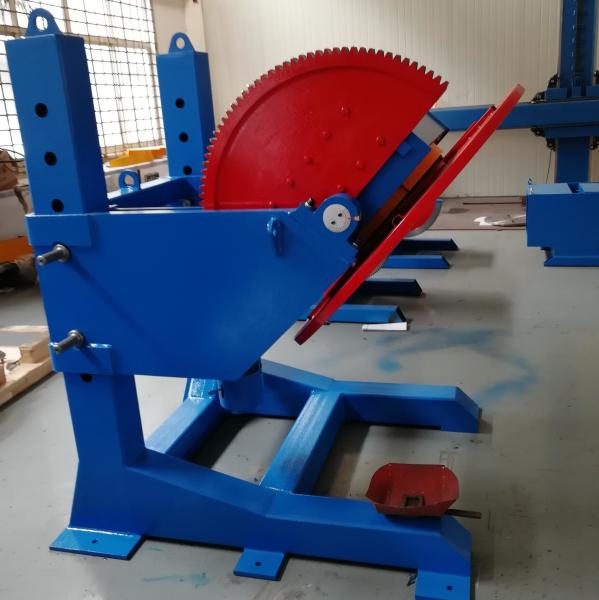

Custom SHB3 Lifting Pipe Welding Positioners Loading VFD Rotary Pipe Welding Equipment
Quick Detail:
- SHB lifting welding positioner can adjust table height according to working requirement.
- Working table can do three acts as revolving infinitely and tilted within degree 0°～120° and height adjusting, which make the tank at ideal position.
- Can add a chuck in the welding table to fix (clamp) the work-piece well.
- With T-slots on the table surface for clamping work-piece.
Description:
Welding positioner is consisting of worktable revolving mechanism, overturning device and electric control system. The work-piece can be reach to the most suitable position through worktable lifting,revolving and overturning.
The worktable revolving and tilting controlled by step-less frequency conversion to achieve a best welding speed. Lifting controlled by manual and fixed by bolt.
Standard type welding positioner can't meet all work-pieces’ processing, please provide your work-piece’s weight, shape and other specification in detail so that we can provide the best solution way for your reference.
Applications:
It used in many industries such as pipe, tank, pressure vessel, boiler, freezing equipment, power station construction, metallurgical, engineering machinery, marine building, and petro-chemical industries etc.
Specifications:
| Model | SHB 3 | SHB 6 | SHB 10 | SHB60 |
| Rated Loading Weight (kg) | 300 | 2000 | 4000 | 6000 |
| Rated Eccentricity Distance(mm) | 150 | 150 | 200 | 200 |
| Rated Center of Gravity(mm) | 200 | 250 | 250 | 300 |
| Worktable Diameter(mm) | ∅ 600 | ∅ 800 | ∅ 1000 | ∅ 1200 |
| Tilting angle | 0-135° | 0-135° | 0-120° | 0-120° |
| Revote speed (rpm) | 0.2-2 | 0.1-1 | 0.1-1 | 0.09-0.9 |
| Tilting speed(rpm) | 1 | 1 | 0.5 | 0.4 |
| Revote driving power (kw) | 0.37 | 0.37 | 0.75 | 1.1 |
| Tilting driving power (kw) | 0.37 | 0.55 | 1.1 | 1.5 |
| Speed adjustable way | REVOTE SPEED IS VFD CONTROL |
| TILTING SPEED IS FIXED |
Competitive advantage:
1. Main electric elements are Siemens/Schneider.
2. VFD rotary speed control, improving the reliability of operation.
3. Steel and rubber roller or PU roller which can ensure a long time using.
4. With lubrication system.
5. Accept testing before delivery.
6. Accepy special design and custom.
FAQ:
